idk who that guy is but I couldn’t think of how to word the title, sorry

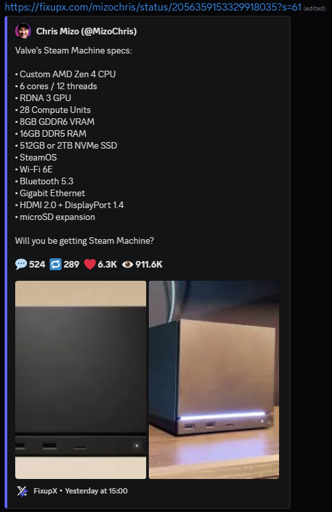

︀︀• Custom AMD Zen 4 CPU
︀︀• 6 cores / 12 threads
︀︀• RDNA 3 GPU
︀︀• 28 Compute Units
︀︀• 8GB GDDR6 VRAM
︀︀• 16GB DDR5 RAM
︀︀• 512GB or 2TB NVMe SSD
︀︀• SteamOS
︀︀• Wi-Fi 6E
︀︀• Bluetooth 5.3
︀︀• Gigabit Ethernet
︀︀• HDMI 2.0 + DisplayPort 1.4
︀︀• microSD expansion
It’s a shame it’s only 8GB of vram. But that was already constrained before the memory apocalypse.
valve allready published pretty detailed tech specs
Interesting - did it always have the storage models?
Two Steam Machine models
512GB NVMe SSD
2TB NVMe SSD
Both models include a high-speed microSD card slot
https://web.archive.org/web/20260121210414/https://store.steampowered.com/sale/steammachine
atleast since january 21st, too lazy to go back further.
deleted by creator
“Alleged”? Haven’t we known this for months?
Shit you’re right, I got misled by whoever shared it to me saying it leaked, I’ll update the title
How much?
Nobody knows the final retail price. Probably not even Valve. Educated guesses are in the 600-1200 USD range. Valve have already said that it wouldn’t be a loss leader, and that they’d made painful sacrifices to ensure an affordable price.
Lots of people estimated ~$800 based on the specs and Valve’s statement that it will be priced similar to a comparable PC. But that was several months ago, so probably $900-1000 by now.
800$ would be my soft limit as I already have a Steam Deck and a Playstation 5.
1000$ with two controllers would be my hard limit.
I’d want to sell the Playstation 5, but my son plays Roblox and Fortnite on it and he wouldn’t allow me😅
Plus there might be a few Sony exclusives I’d want to play if they’re as great as what we got at the end of the Playstation 4 era. It’s also mostly used to watch the NBA league pass as Linux used to be troublesome for this (don’t know if it still is).
If you have to ask, you can’t afford it.
Which is a crazy phrase because asking can be done for a lot of things.
I was trying to be funny. My point was simply that it’s going to be expensive.
I got your ZJ reference!
And I have $12!
Oh wow, you got down voted for no reason. I was making a general commitment in regard to the common phrase, not directed at you.
Anybody else mildly surprised it isn’t based on an APU with unified memory, like a cheaper/slower Framework Desktop?
I don’t think there are any ‘cheap’ Strix Halo chips out there, Valve probably got a massive discount (relatively) by using previous gen. laptop parts
They say it’s a custom design, so surely they could’ve custom-designed it to be unified rather than discrete if they wanted. I guess maybe they were trying to make sure it would only be bought by gamers by deliberately making it less versatile for AI?
Custom in this case doesn’t really need to carry any weight either, it could be a simple voltage bump, clock bump, laser cutting cores etc. and they would still call it custom.
It’s not a “from the ground up” custom chip. Unified still requires a significant amount of chip area per die, especially if they want to have a relatively beefy GPU (somewhere below Radeon 8060S, but above Radeon 780M).
I would imagine this gives the best perf./buck from Valve’s POV, without costing an arm and a leg
Unified still requires a significant amount of chip area per die
Even compared to having two entirely separate memory controllers, one for the CPU and one for the GPU?
I would assume the total area is larger for the separate CPU+GPU die when compared a single unified chip, sure. But the cost per millimeter doesn’t necessarily scale linearly either (larger chip, lower yields), so it might be cheaper to buy CPU+GPU rather than the unified chip even though the total area is larger.
For reference, TechPowerUp lists:
RX 7600M: 204 mm² @ TSMC 6 nm
Strix Halo: 308 mm² @ TSMC 4 nm
Not sure what kind of area one could expect for the CPU alone (without the integrated GPU) for this kind of process
larger chip, lower yields
Oh right, I forgot about that part.
Not sure what kind of area one could expect for the CPU alone (without the integrated GPU) for this kind of process
I guess you could look up specs for a desktop Ryzen CPU that doesn’t have integrated graphics. Not sure which is the right one to pick, but I checked a few Zen 4 AM5 chips and they were all 71 mm2 @ TSMC 5 nm.
BTW, what actually is “Strix Halo” anyway? I’m confused about whether it’s what they’re calling all the latest-generation APUs, or just the high-end ones, or Asus co-branding, or what.
Are there not any lesser APUs (with smaller die size and higher yields) that aren’t “Strix Halo” but still have a similar architecture and decent gaming performance?
BTW, what actually is “Strix Halo” anyway? I’m confused about whether it’s what they’re calling all the latest-generation APUs, or just the high-end ones, or Asus co-branding, or what.
Strix Halo is the “high-end” ones (and currently the latest), in terms of gaming they are closer to previous gen discrete laptop GPU (hence they use the naming scheme Radeon 8XXX series).
There are smaller ones as well, the one that is “mid-tier” is Strix Point, which has the Radeon 800M series GPU, i.e. closer to what one had in previous generations of integrated GPUs.
In terms of gaming performance, you can compare using Notebookcheck, as an example; Kingdom Come Deliverance 2 on low preset at 1080P:
CPU GPU APU Average FPS Ryzen AI 9 HX 370 AMD Radeon 890M Strix Point 19.9 Ryzen AI Max Pro 390 AMD Radeon 8050S Strix Halo 76.6 Ryzen AI Max+ 395 AMD Radeon 8060S Strix Halo 101.7 So, there’s a pretty big leap going from Strix Point (mid tier) to Strix Halo (high-end)
Do we know how this will compare to the rdna 3 stack? I’m assuming somewhere between 7700 and 7800?
No, weaker. It’s an overclocked 7600M (laptop GPU). There’s many leaks that show that Valve specifically targeted a low cost by using laptop components that AMD couldn’t sell.
The CPU is also weak: it has 2 big cores and 4 little cores. Estimated cost of materials (before the RAM shortage) was ~425 USD, now the cost of materials is ~550 USD
So I have basically a whole pc leftover, 11600k + 7700xt from upgrades over the last year or two which is why I was asking. I guess that’d be fairly more powerful. 4k felt pretty bad on it though.
Edit: I’m assuming fsr is the “4k 60” req. I wonder if that’s going to include framegen?
So, $ 633 - $ 715 if they go by average markup margins (15-30%). But that’s a big IF. Seeing as this is a low volume product compared to giants like Apple or Dell for example, I would expect the possibility of even greater numbers. I am assuming Valve is underestimating the initial demand and does not plan to market the product outside of their current countries and is not planning to advertise the product heavily.
